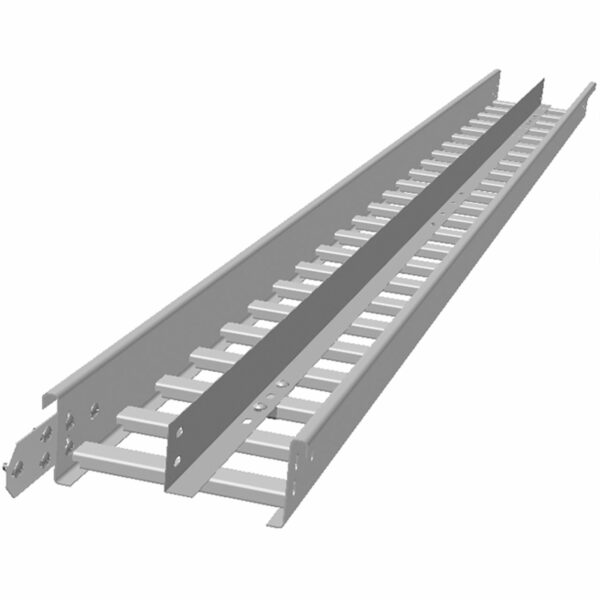

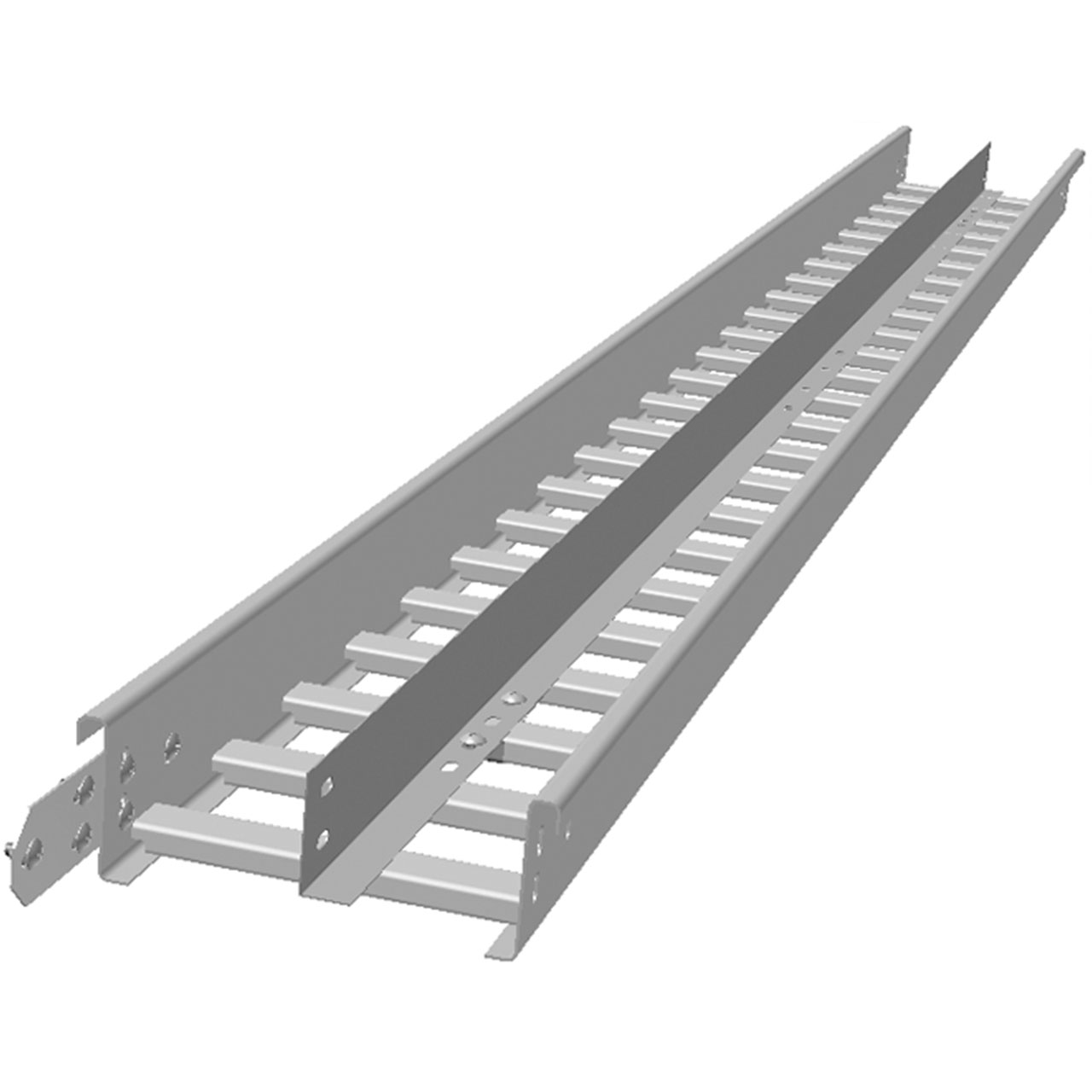

Barrier strip (SC(H)PG)*
They are used for special cases in which cables with voltage higher than 600 V are installed in the same tray with other cables of lower voltage or communication or control cables. It is a galvanized sheet, bent and perforated, which is secured to the rungs by means of a special fastener. It comes in straight sizes of 2.40 m in length by the appropriate “X” height depending on the case. For curved elements, the installer must adapt the straight section supplied. Note: The separation of the rungs from the tray where it will be installed must be specified.
*Height (H): 5 (1,97″), 8(3,15″), 10(3,94”),
12(4,72”) or 15(5,91”) cm
