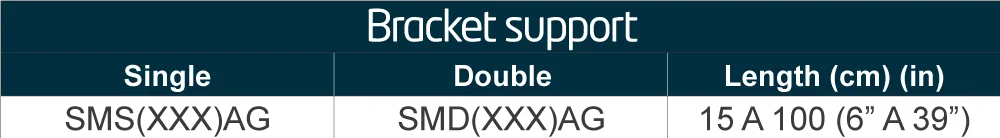

Bracket support (SM)

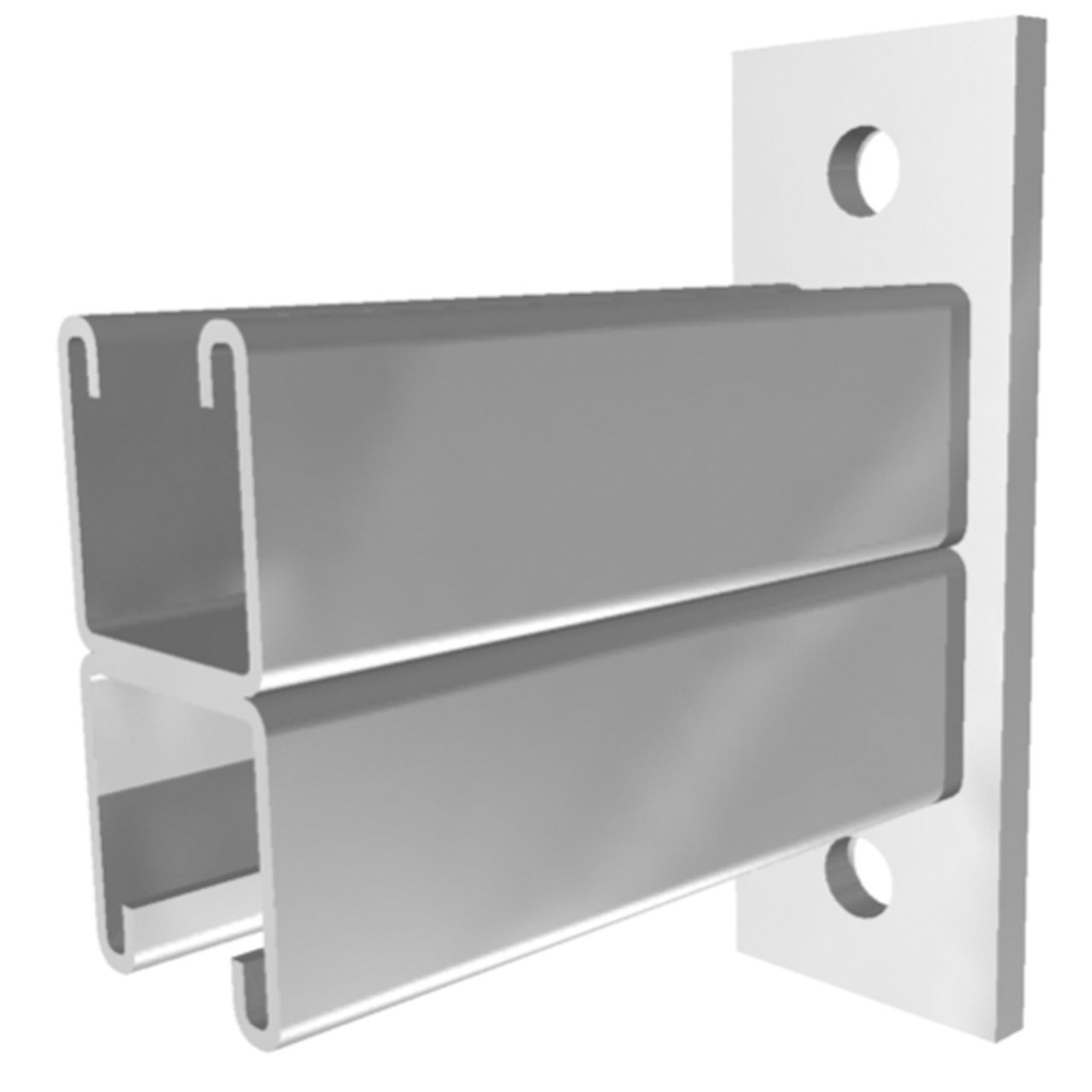

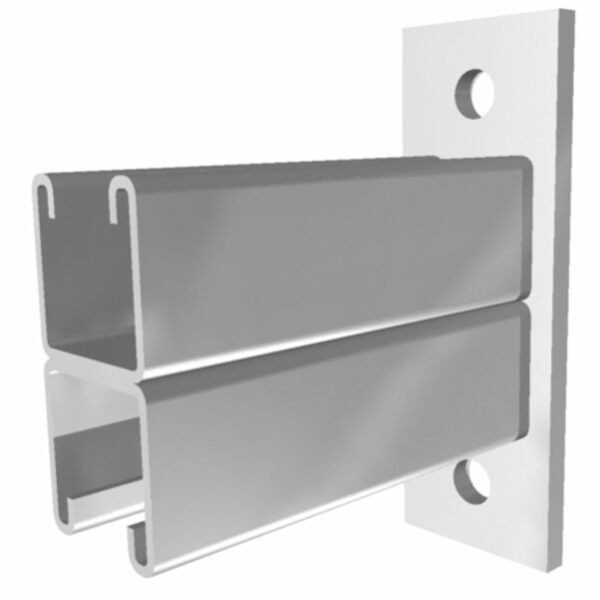

Double bracket
Double bracket bra cket Manufactured from MECANO profiles in lengths to suit the widths of the MECANO cable trays. To support tray, instead of SBAG, use tray to bracket fastener (Ref. SBAGM) with clamp nut (Ref. TMAGxxR). Note: Use a bracket 5 cm longer than the width of the tray.
Notes:
1. In order to place the cable tray on the bracket support, use the clamp (SBAGM) and the strut channel nut (TMAGxxR).
2.The bracket support must be 5cm longer than the cable tray width. Universal type support (SU): Universal support.
