Steel Poles

Polygonal poles for electrical and telecommunication

Poles are manufactured in polygonal truncated conical sections that adjust by friction on top of each other, designed and fabricated in accordance with the guidelines of the Technical Guideline for Electrical Installations.

Our poles´s height are from 6 mts up to 14 mts, and breaking load starting from 350kgf up to
1350kgf.

Advantages:

  • Short and light sections that facilitate transportation and access to difficult areas.
  • Easy set up and installation with manual tools.
  • High corrosion resistance due to the hot dip galvanization.
  • High mechanical resistance.

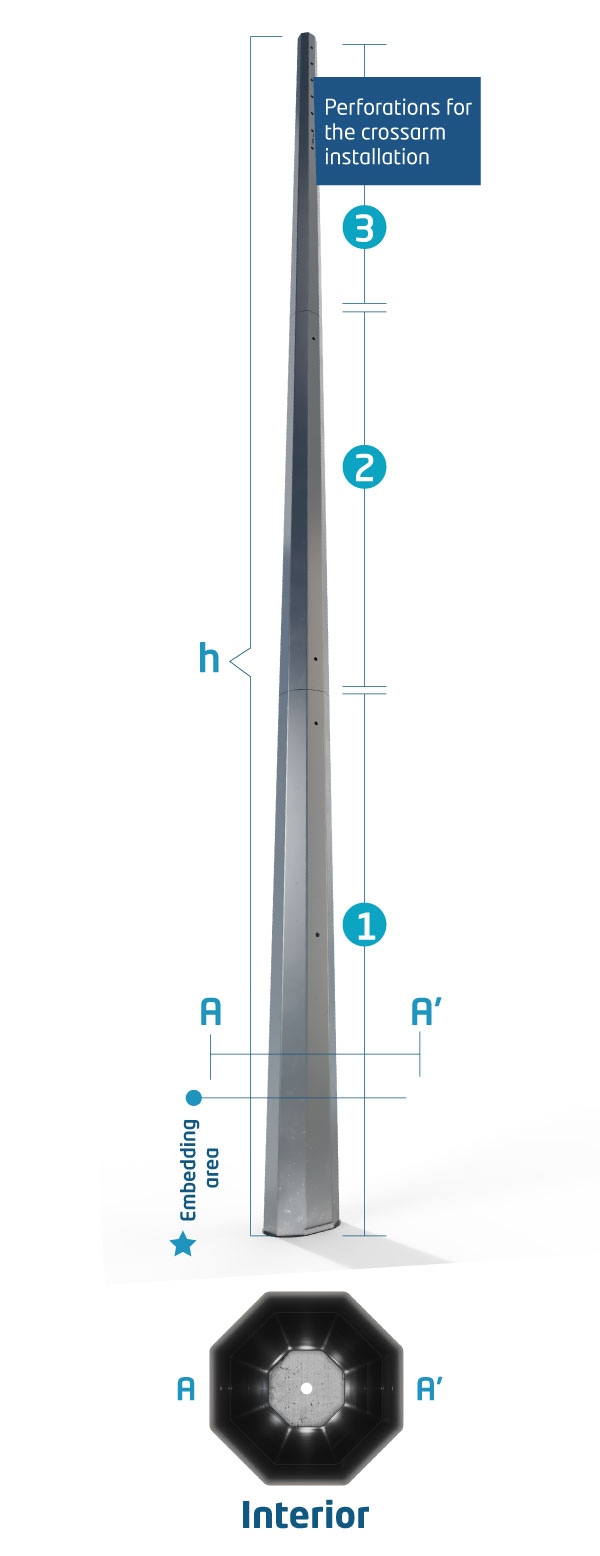

Embedding area:

 The length of pole embedment is defined by its height (refer to the chart in the List of
References). Additionally, this area may have an additional layer of epoxy paint according to
regulations or client specifications.

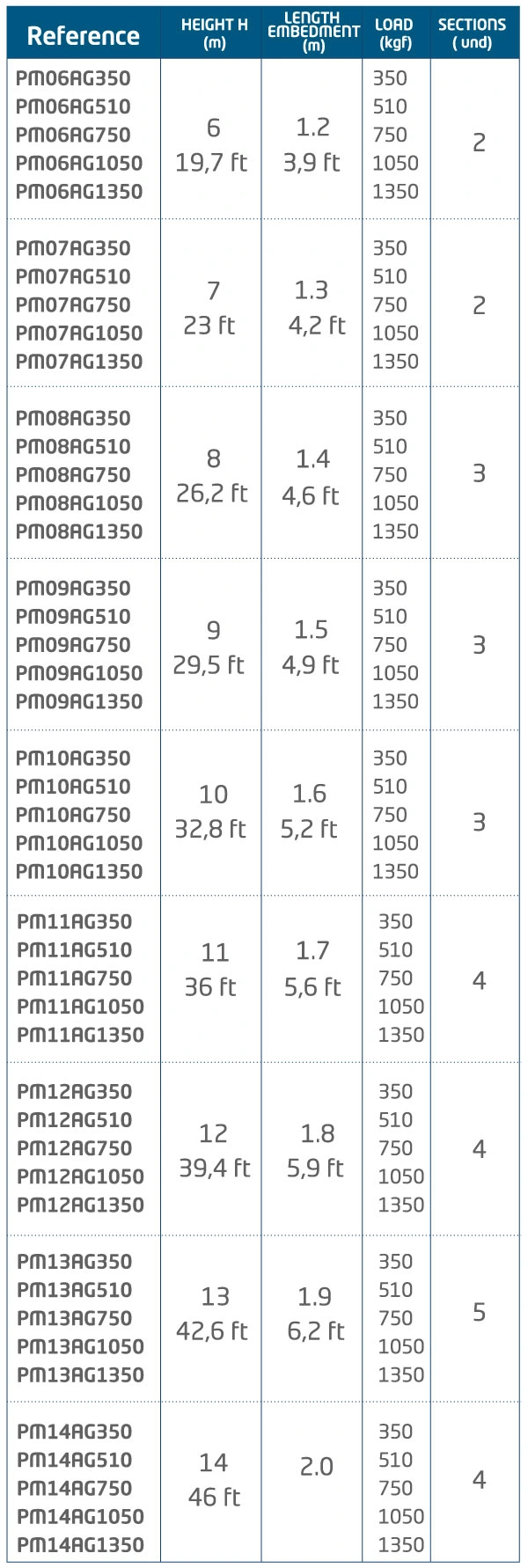

List of references:
